HM270 industrial flexible ventilation duct fabric.HM270 工业柔性通风风管面料。
HM270 is a 100% polyester, 600D × 600D fabric for flexible ventilation ducts, not a laminated composite fabric. Slitting and custom colours are available, with established bulk supply to customers in Europe and North America.HM270 是用于柔性通风风管的 100% 涤纶、600D × 600D 面料，并非复合面料。支持分切与颜色定制，已为欧洲、北美客户提供批量生产与供货。

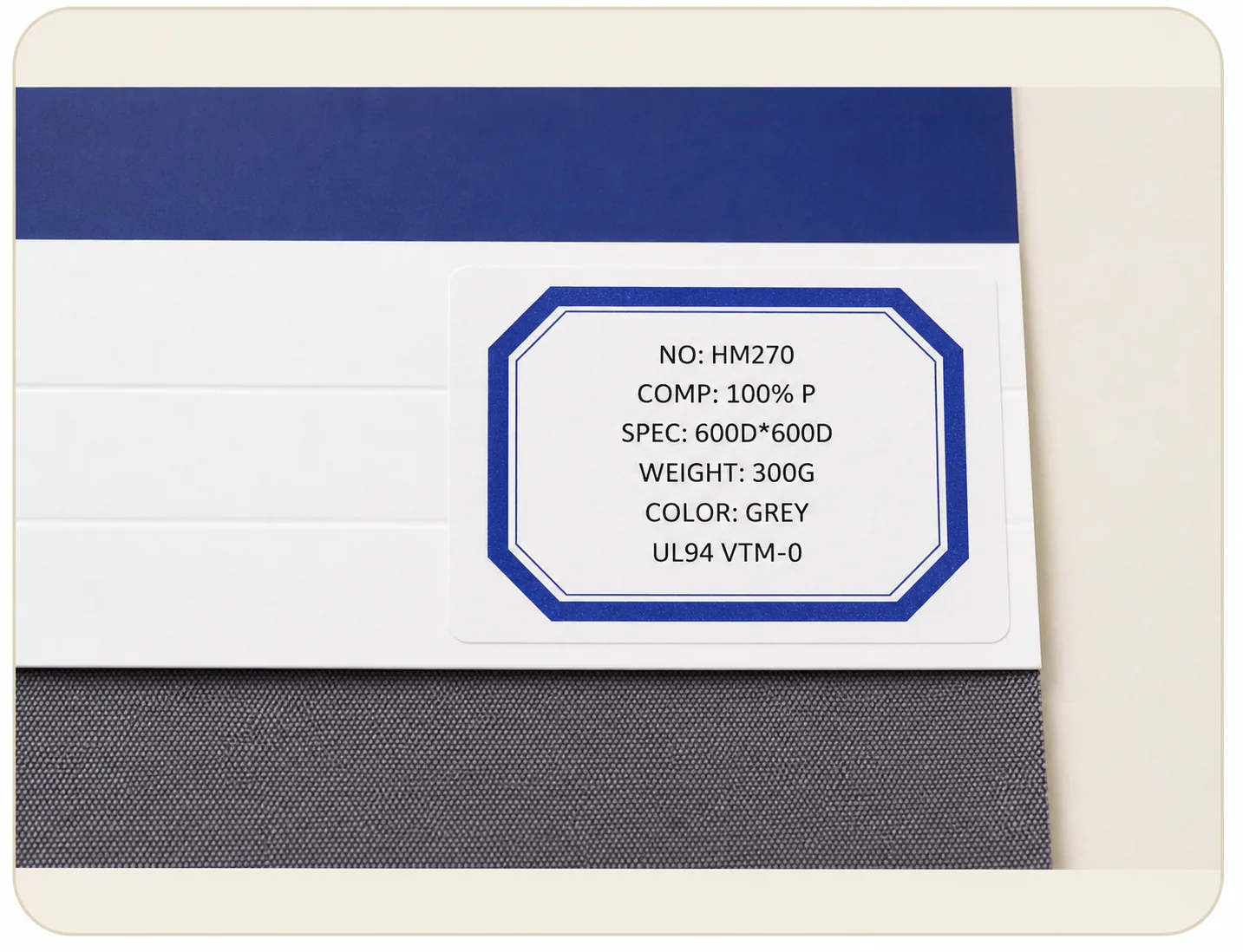

Catalog Specification目录参数

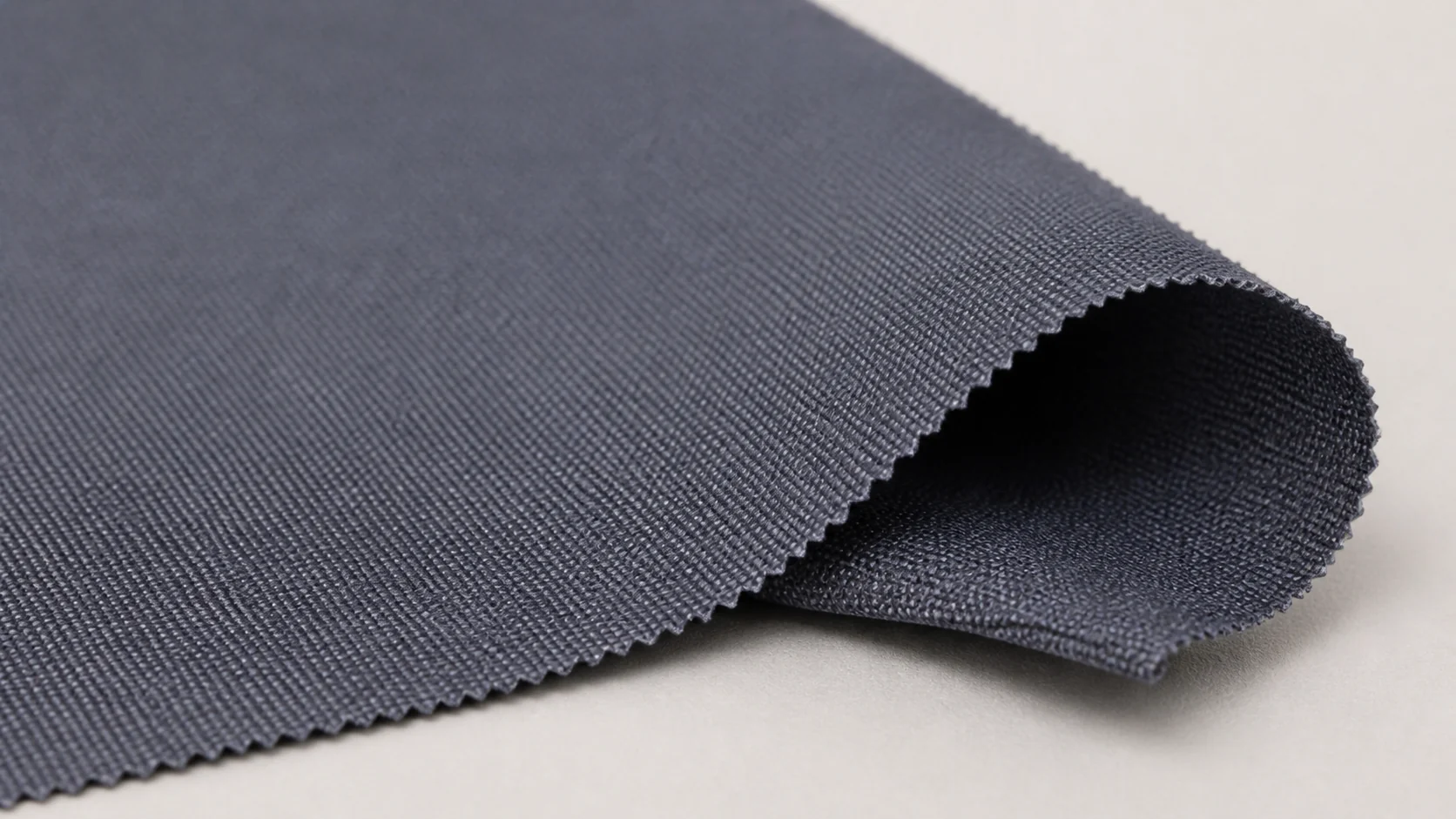

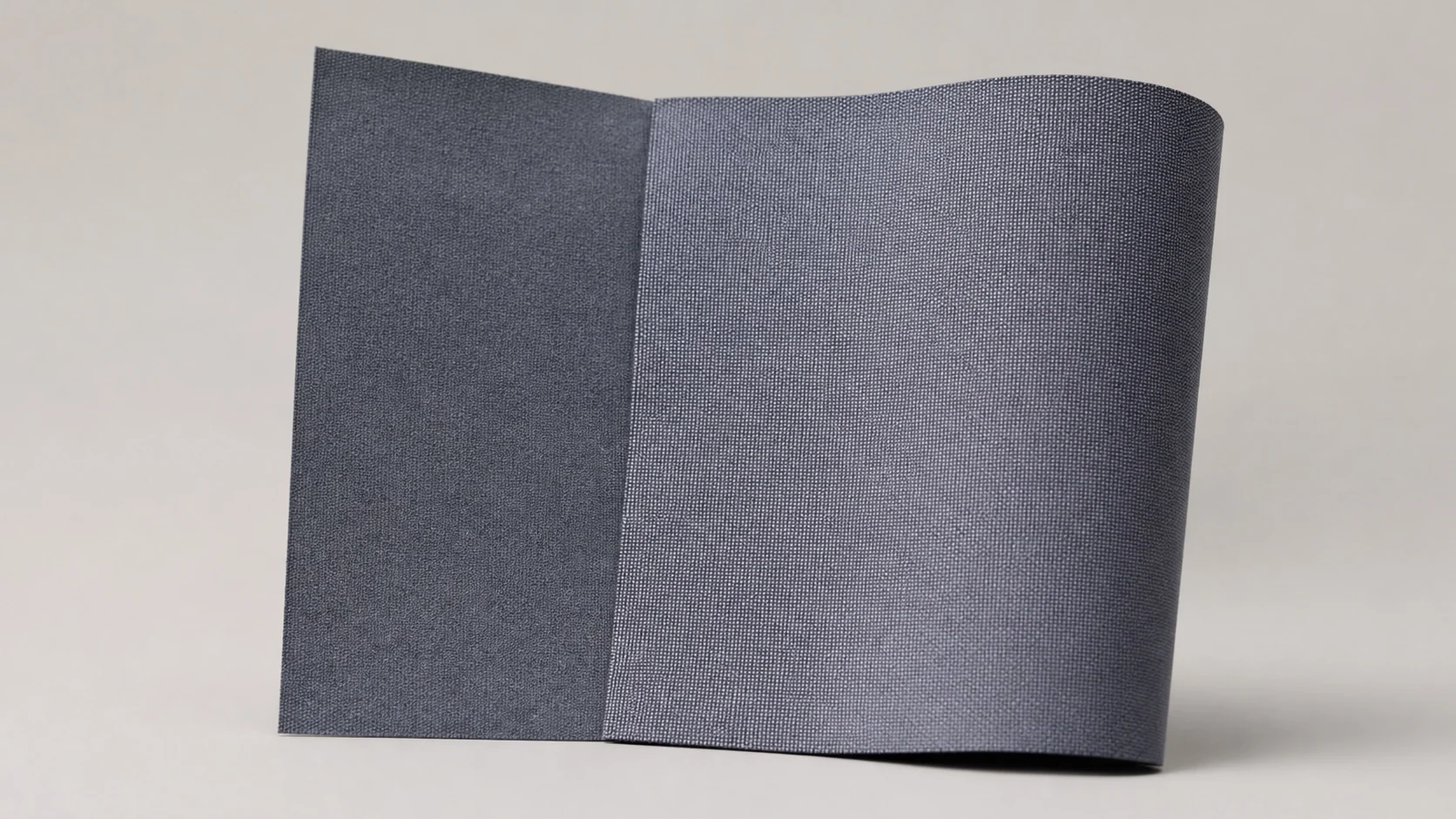

Fabric specifications面料规格
Material, slitting & application面料、分切与应用
Fabric rolls and duct production面料卷材与风管加工

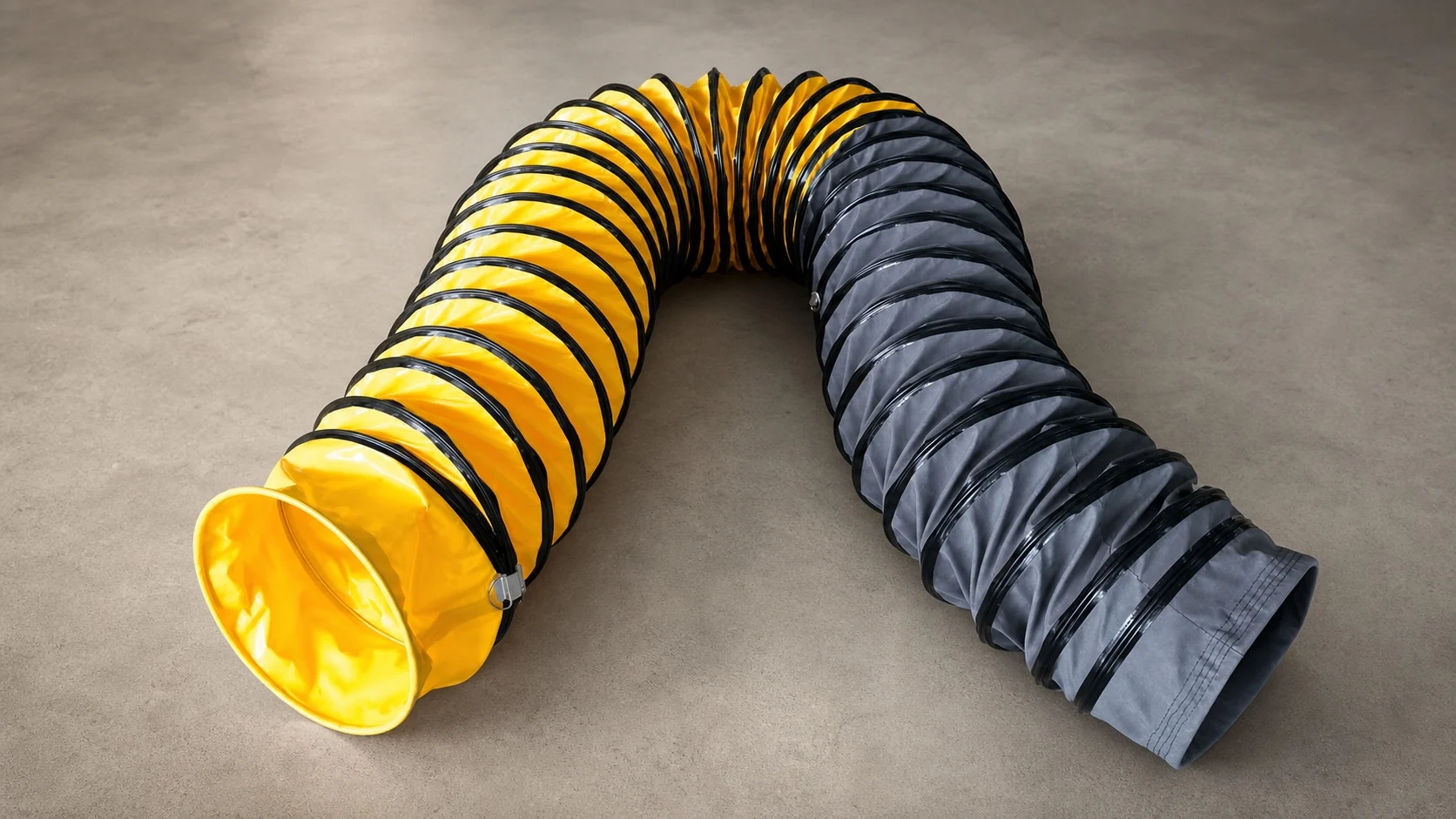

Flexible duct application reference柔性风管应用展示

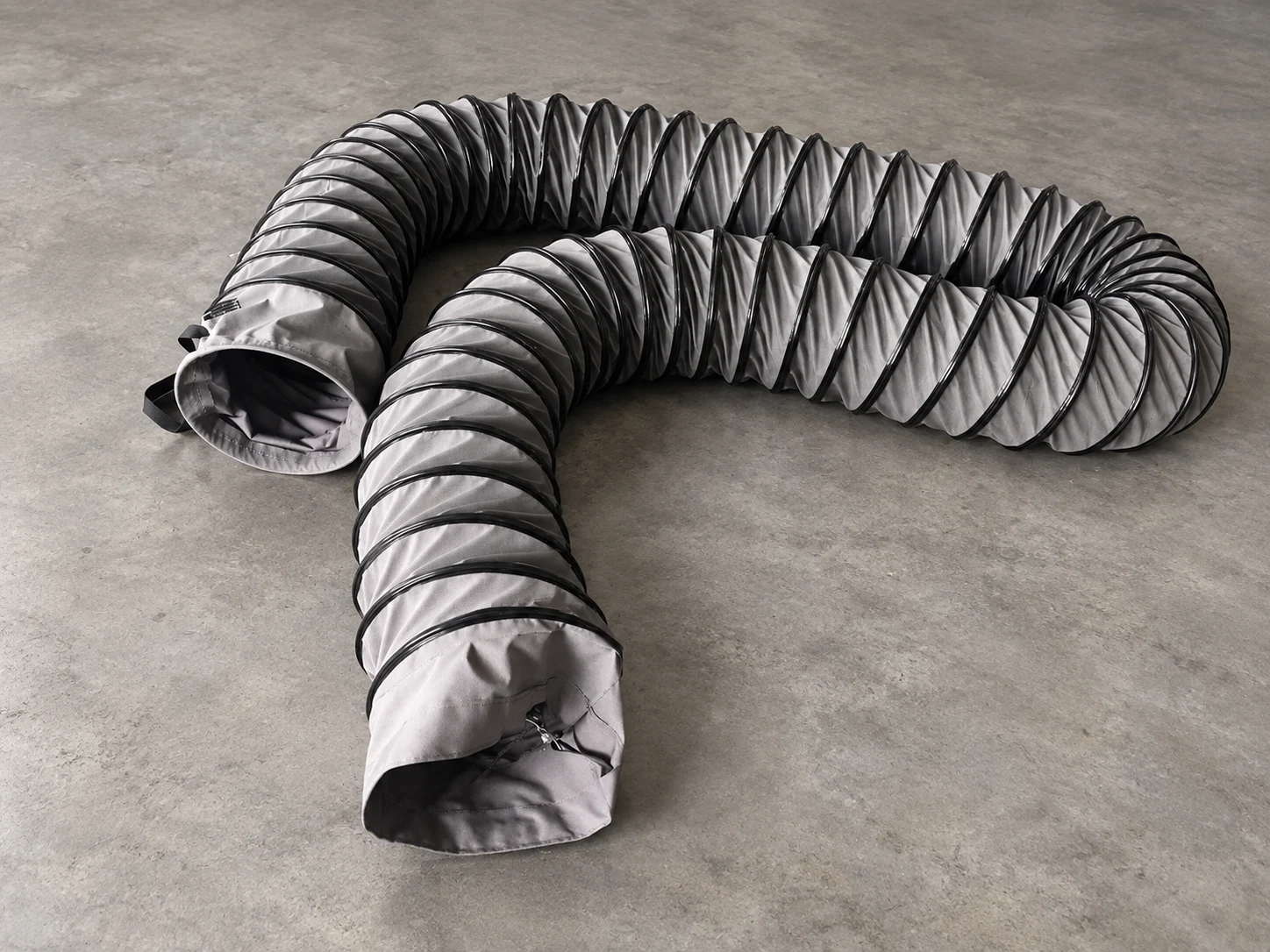

Finished ducts made with fabric and spiral reinforcement.面料与螺旋骨架组合后的风管成品。
Retouched from our workshop photograph.基于车间实拍精修。

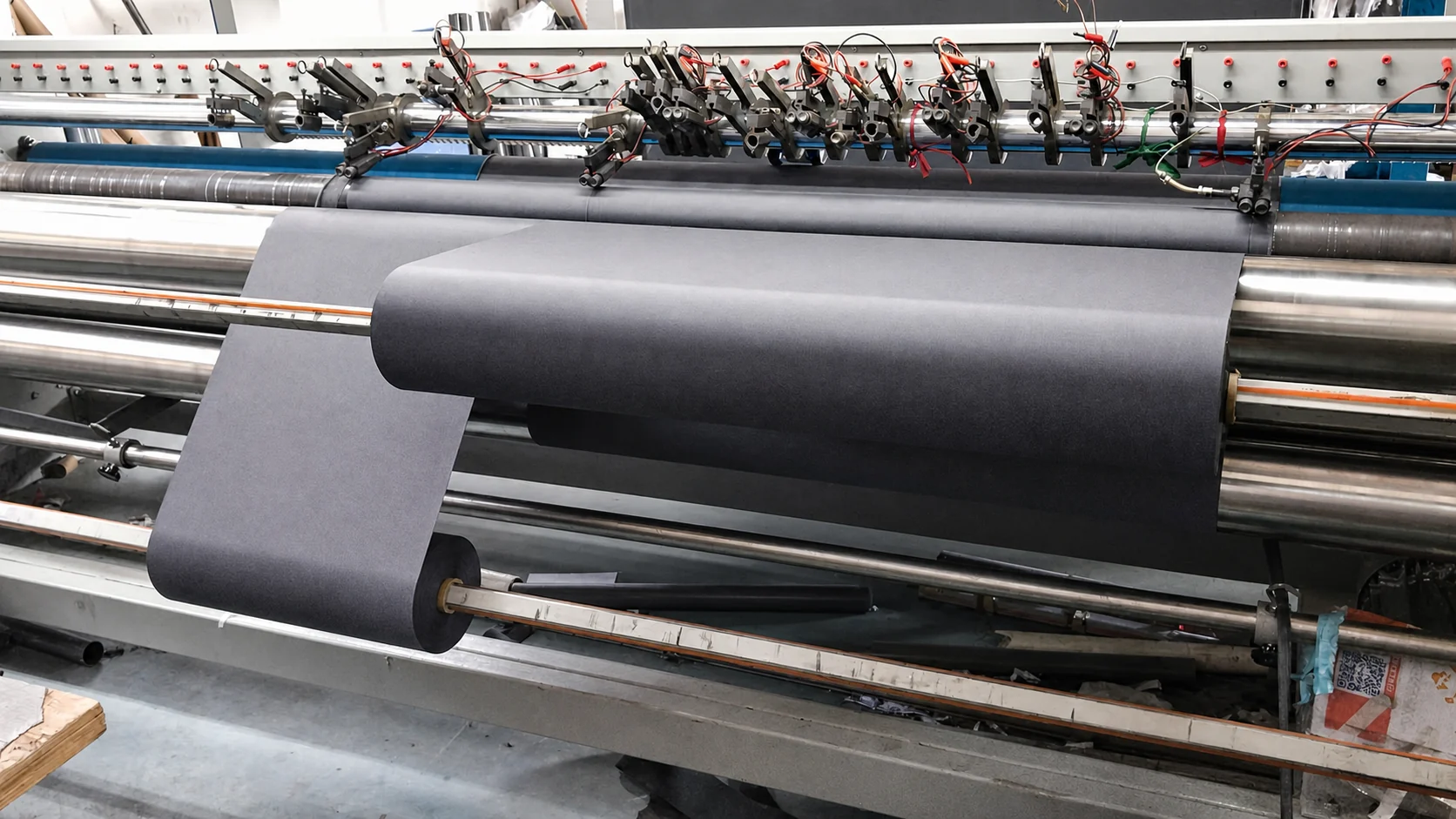

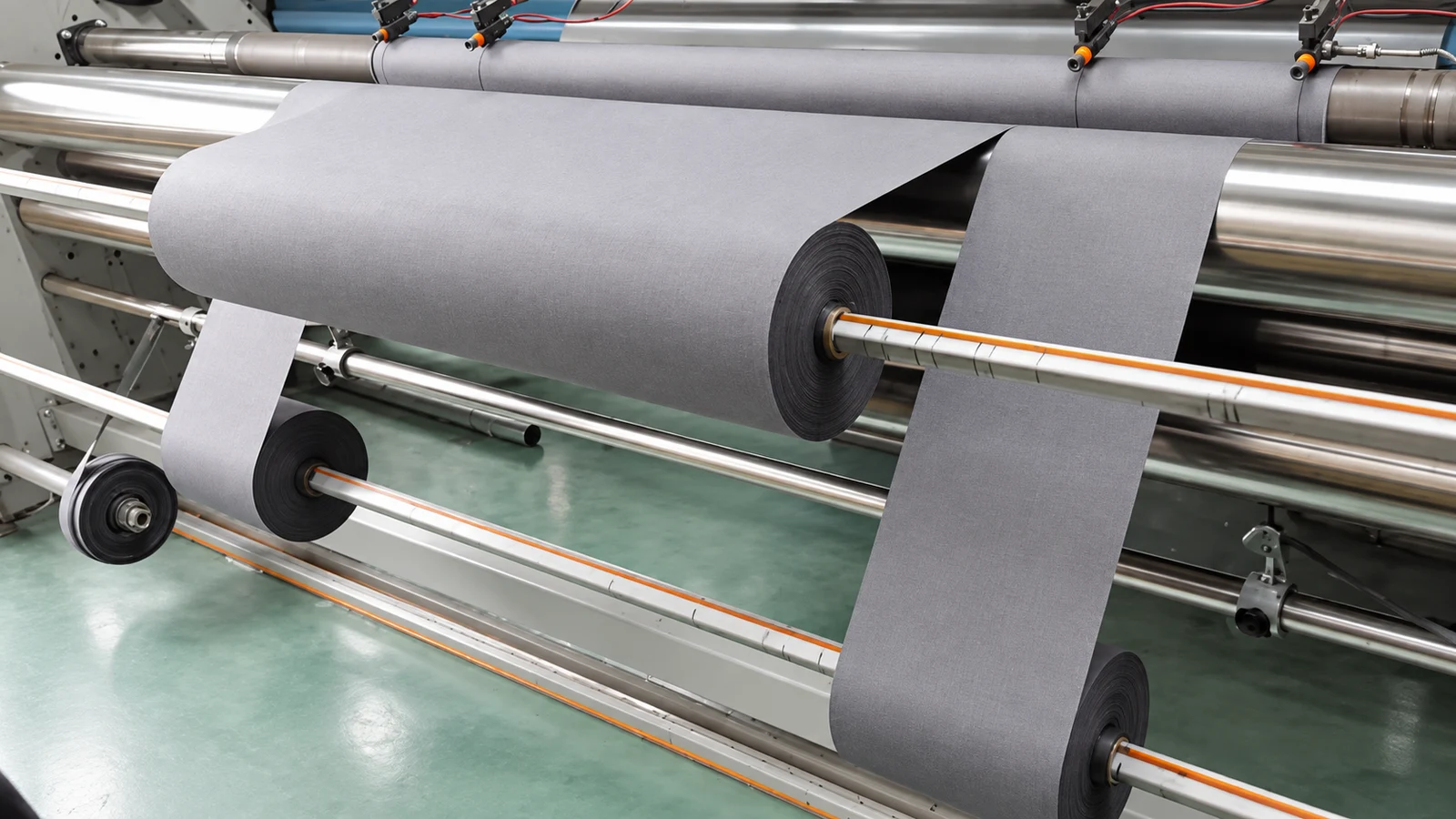

Production photograph, retouched分切生产实拍 · 精修
Slitting to your required width按需求确认分切宽度
Share the strip width, required length or roll format, colour and order quantity. We confirm the agreed specification before bulk production.提供分切宽度、长度或卷装要求、颜色及采购数量，确认规格后再安排批量生产。

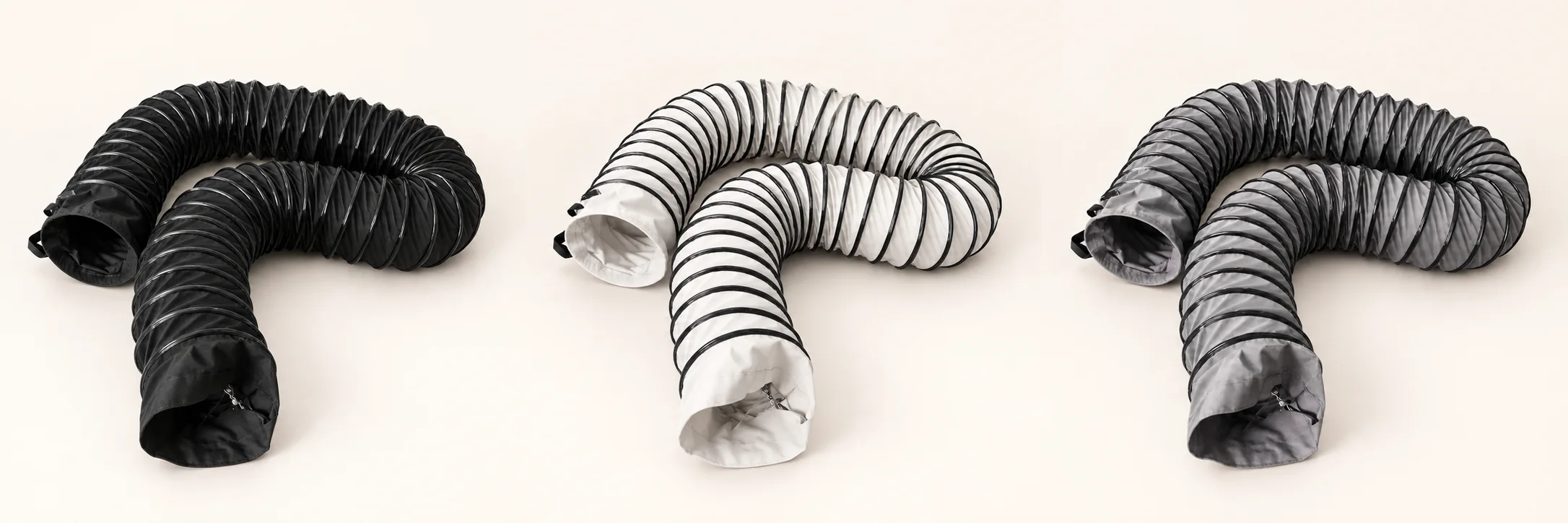

Custom colour options颜色定制
Colours made to your sample按色样定制颜色
Colour simulation, not stock photography. Final colour is agreed against a physical sample.颜色模拟图，不代表现货；最终颜色以确认的实物样品为准。
Application context应用场景

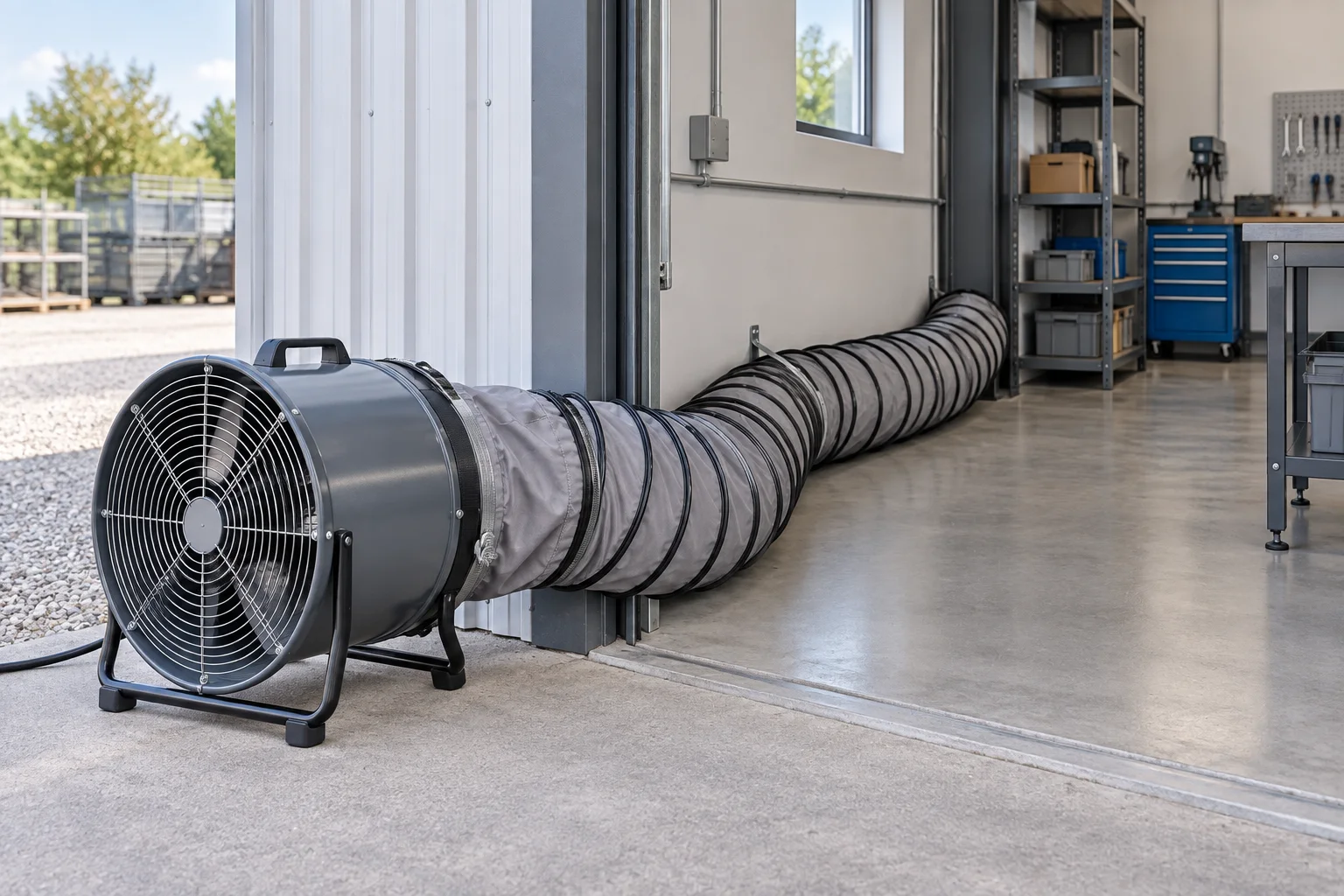

A flexible air route for temporary workshop ventilation.车间临时通风，连接设备与送风位置。
Portable equipment connections便携通风设备配套
A flexible duct carries air from a portable fan to the required location. Routing and connections depend on the equipment and site.柔性风管将便携风机的气流引至需要通风的位置，走向和连接方式按设备与现场布置确定。
Equipment requirements设备配套要求
Confirm duct diameter, airflow, pressure and temperature with the equipment manufacturer before choosing the fabric. This is an application illustration, not a performance claim.选料前，与设备厂家确认风管口径、风量、压力和温度。图片仅示意连接方式，不代表性能承诺。
SGS test informationSGS 检测说明
The black 324 g/m² version was tested by SGS to UL 94-2024, clause 11, with a VTM-0 classification at 0.50 mm thickness.黑色 324 g/m² 版本经 SGS 按 UL 94-2024 第 11 条测试，0.50 mm 试样获得 VTM-0 等级。
Report AJFTS26007761R01_EN names our export agent, SHANGHAI SHUN YUAN XING TEXTILE PTY, LTD, as the applicant. The grey 300 g/m² fabric is a different-weight version of the same product; the reported result applies to the tested sample, not automatically to other weights, colours or a complete duct system.报告 AJFTS26007761R01_EN 的申请方为外贸代理公司 SHANGHAI SHUN YUAN XING TEXTILE PTY, LTD。灰色 300 g/m² 面料为同款的不同克重版本；报告结论适用于送检样品，不直接覆盖其他克重、颜色或整套风管。
The reissued report AJFTS26007761R02_EN reproduces the R01 results and states that only the original report is legally binding.重发版 AJFTS26007761R02_EN 转载 R01 的测试结果，并注明法律用途以原报告为准。
View the SGS report and tested sample details查看 SGS 报告及送检样品范围Request a sample or quotation索取样品或报价
Send us the required colour, fabric weight, slit width, roll length and quantity. If your project specifies a test standard, include it with your enquiry. We will confirm the sample, packing and delivery schedule with you.请告诉我们颜色、克重、分切宽度、卷长和采购数量。如项目有指定测试标准，请一并提供。我们会与你确认样品、包装和交付安排。
