High-visibility workwear sourcing
Buying fabric for reflective workwear? First separate the fluorescent background cloth from the reflective tape. For the background, compare Huamao HM095, a 245G polyester-cotton fabric, with HM038, a 295G stretch fabric. Request the exact sample that fits your garment and washing brief.
Prepared by Changshu Huamao Textile Co., Ltd. Second Branch · Fabric sourcing guide
Both cards carry “Waterproof CO” and “EN20471”. Use those entries to identify the sample, then obtain the applicable test evidence for water resistance or laundering claims. Garment conformity also requires review of reflective components and clothing design. Lighting and screens affect the yellow shown in a photograph; approve color on a physical swatch.
| Component | What it contributes | What buyers should confirm |
|---|---|---|
| Fluorescent background fabric | Daytime conspicuity and the garment’s main textile surface. | Required color, construction, weight, hand feel and performance after the specified cleaning route. |
| Retroreflective tape or trim | Returns incident light towards its source, helping recognition when illuminated by vehicle headlights. | Specific reflective material, attachment method, compatibility with the fabric and applicable test evidence. |
| Finished garment | Combines the materials into the intended design. | Material areas, placement, seams and the product’s applicable assessment. |
Retroreflection returns light towards its source. Specify the background fabric and reflective component separately when discussing the garment.

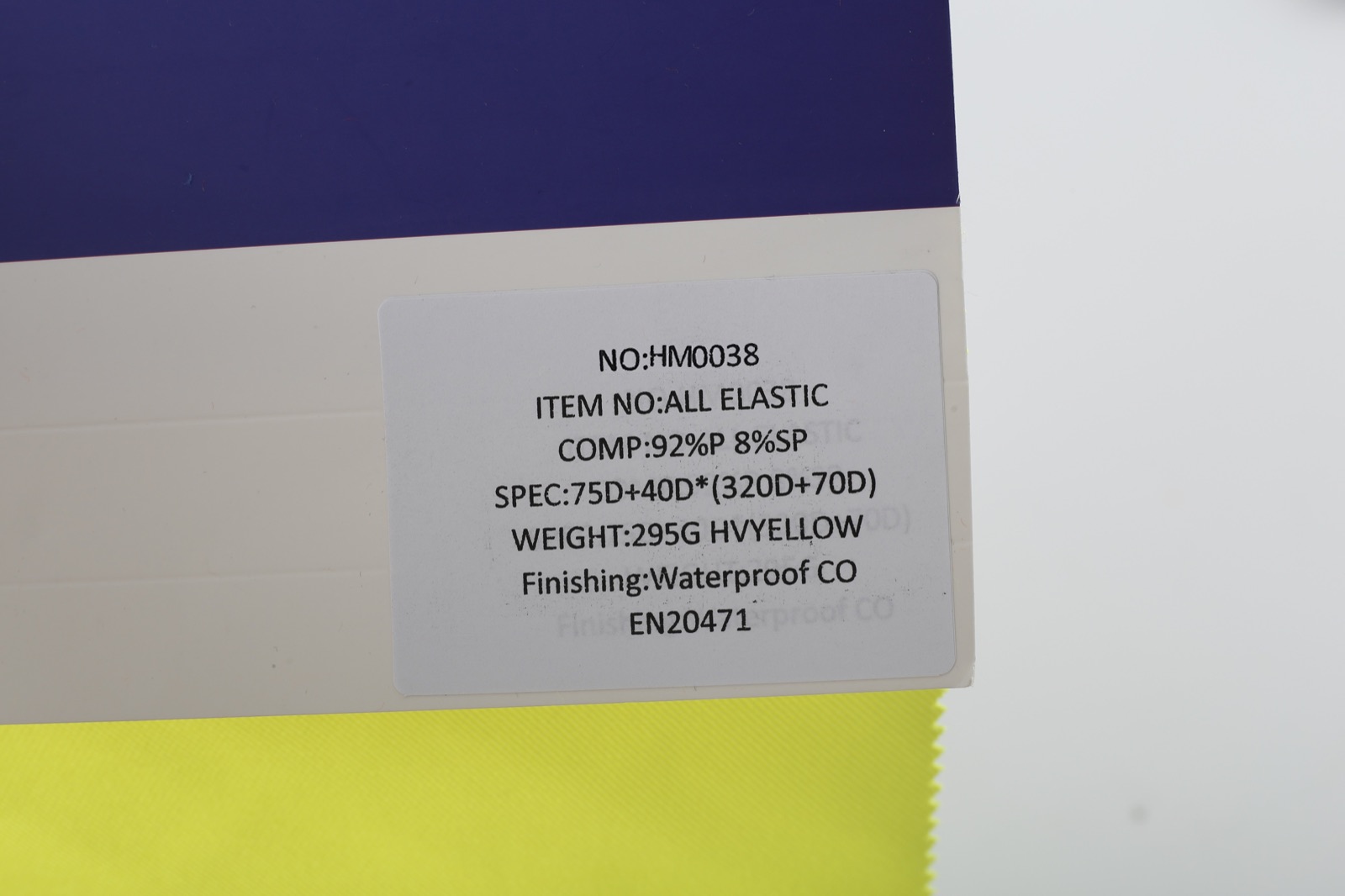

| Sample-card field | HM095 | HM038 |
|---|---|---|
| Item | TC | ALL ELASTIC; catalog name: 4-way stretch |
| Composition as printed | 68%P 32%C | 92%P 8%SP |
| Specification as printed | 150D*10SCVC | 75D+40D*(320D+70D) |
| Weight as printed | 245G | 295G |
| Color as printed | HV YELLOW | HV YELLOW |
| Finishing label as printed | Waterproof CO / EN20471 | Waterproof CO / EN20471 |
The entries above come from the sample cards shown on this page and were cross-checked against the product catalog. Construction strings and the “G” weight notation are retained as printed. HM095 is listed as TC and grouped in the catalog’s polyester-cotton weft-stretch series, so it should not be described as non-stretch on that basis. SP is quoted from the HM038 card. Confirm elasticity, finish and order specifications against the physical sample and technical documents.
Request HM095 and HM038 swatches to compare hand feel, stretch and thickness against the same garment brief. For rainwear, also specify the coated or laminated assembly; see the PU coating vs TPU lamination guide. Check any wash-cycle, waterproof or garment-class claim against the relevant specimen report and garment assessment.
Use the buying brief to choose which swatches to request, then compare them under matching conditions. Composition helps narrow the choice; fabric performance still needs testing.
The HM095 card records 68%P 32%C, matching the polyester-cotton description in the current product information. It is a sampling option for a brief that calls for cotton content; cotton is not the majority fiber at 32%. Cotton Incorporated’s fiber handbook describes greater moisture uptake for cotton than polyester. Fiber moisture uptake, fabric breathability, wicking and drying are different properties, so compare the actual swatches.
The HM038 card records 92%P 8%SP and the catalog lists it as 4-way stretch. If SP is confirmed as spandex/elastane, its elastic-fiber content is a reason to assess it for movement. The FTC fiber definitions describe the generic spandex fiber category; confirm the supplied brand separately. The 8% content is not the fabric’s extension percentage. Agree on warp/weft directions, load or extension conditions, then compare extension and recovery; ISO 20932-1 provides a fabric-elasticity test route.
HM095 is grouped in the catalog’s weft-stretch series. Yarn processing and fabric structure also affect extension. Compare measured elasticity using the same method instead of deciding from the TC or 4-way-stretch category name alone.
| Buyer requirement | What to compare | What it means for sampling |
|---|---|---|
| Perspiration and drying | Consider AATCC TM195 for liquid moisture management, which involves fibers, yarns and fabric structure. Specify a separate method for drying rate. | Cotton content is not a substitute for whole-fabric wicking or drying results. |
| Vapour transfer and warmth | Discuss thermal and water-vapour resistance under matching conditions using ISO 11092:2026. | Laboratory resistance values do not directly establish comfort in a particular workplace. |
| Repeated laundering | For industrial-laundry projects, consider ISO 15797 procedures and compare dimensions, color and stretch after the agreed wash/dry route. | Neither cotton nor elastane content alone proves a wash-cycle life. Agree on testing when results are unavailable. |
| 245G versus 295G | Confirm units and sampling conditions; ASTM D3776/D3776M measures fabric mass per unit area. | Even if both are g/m², greater mass alone does not prove greater warmth, abrasion resistance or quality. |
ISO 20471:2013 covers clothing visibility, including material performance and garment design requirements. A fabric record therefore supports only part of the review. Confirm the edition and market requirements with the buyer or responsible laboratory.
Use the fabric report versus garment certification guide when a supplier document and the garment approval are being discussed as one item.
Say whether you want HM095, HM038 or both for comparison, then give the garment use, destination market, color, weight range and cleaning conditions. When replacing an existing fabric, include its code or photograph and describe the hand feel, thickness or stretch you want to retain or change.
Match the quoted code to the sample photograph and agreed specification. If you are replacing an old fabric, identify which properties need to stay the same before approving an alternative.
These sources explain fiber principles and test categories. Request reports matching the fabric code, color and finish when reviewing samples. The general references cited here do not certify these products or establish a branded-fiber claim.
